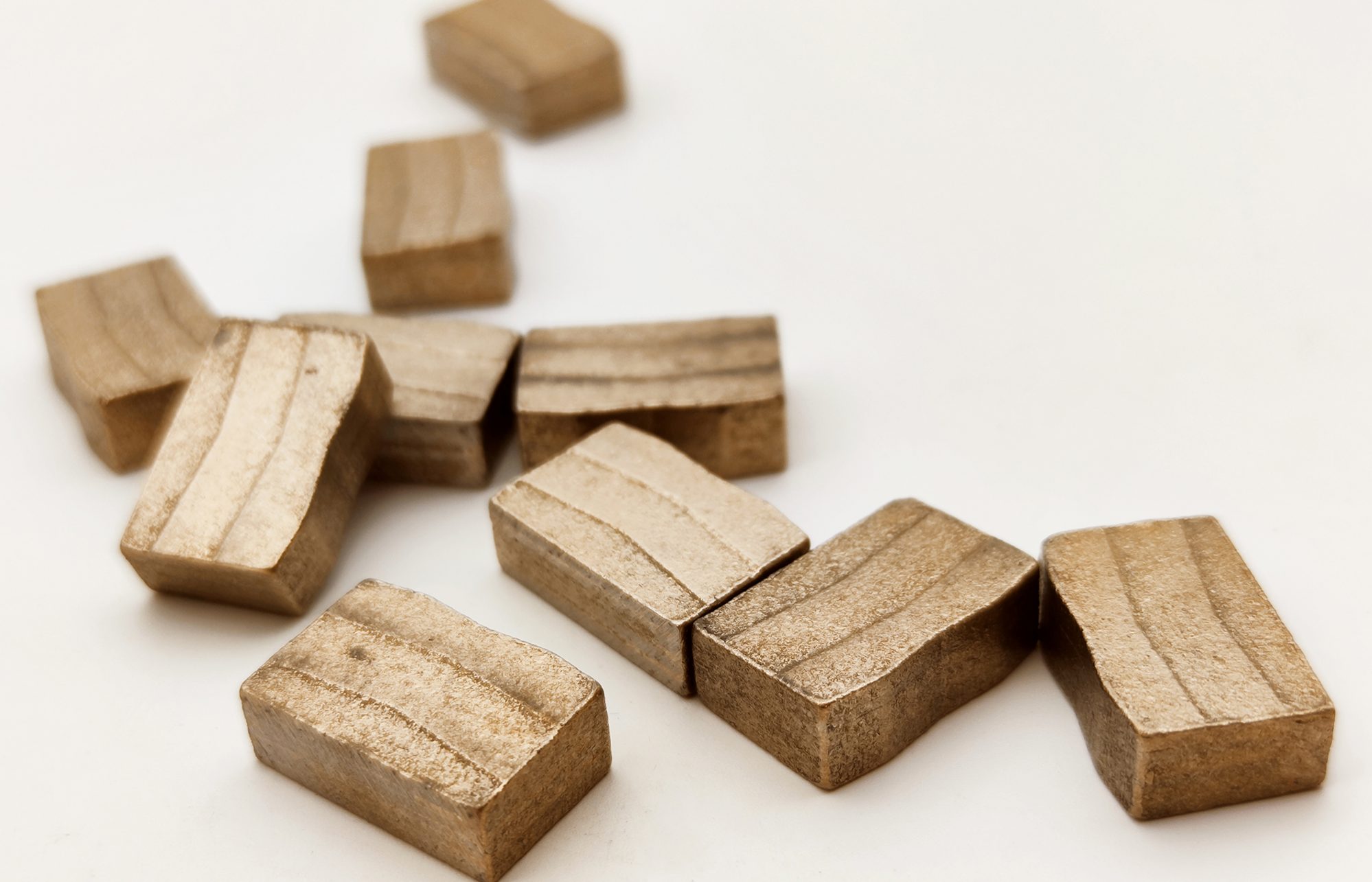

Multiblade ( same diameter blade combination cutting) segments
Multiblade segments
Product Features：
1 It work in low noise,small cutting slot which ensures maximum use of stone and uniform thickness. 2 Stable cutting,narrow cutting gap,stone waste reduction.
Product Description
Product name
Multi Blade Segments
Use for
Marble block
Segment shape
Trapezoid, R/M/etc.
Segment sharp
Sandwich, Layer, etc.
Supply Ability
6,000,000 Pcs/Month
Factory
More than 17 years’ experience
Delivery time
7~15 days after payment received.
Product Specifications
Saw blade Diameter(mm)
Steel Core Thickness(mm)
Segment Dimension(mm)
Segment Number(pcs)
1000
5
24×7.0/6.2×13(15,20)
70
1200
5.5
24×7.4/6.6×13(15,20)
80
1400
6.5
24×8.4/7.6×13(15,20)
92
1600
7.2
24×9.2/8.4×13(15,20)
108
Multiblade segments size
Multiblade ( different diameter blade combination cutting) segments
Product application
Segment for Multiblade block cutting. This combined cutting method can meet the cutting of larger size stone, especially for saw blades diameter more than 1800mm, such as 2000mm, 2200mm, 2500mm or 3000mm, they can process larger block to have the larger slabs, it can better meet the different needs of stone processing. The segments change size according to the blank blade thicknes.
Product Description
Product name
Multi Blade Segment
Use for:
Granite
Segment shape
Trapezoid, K/M/etc.
Segment sharp
Sandwich, Layer, etc.
Supply Ability
6,000,000 Pcs/Month
Factory
More than 17 years’ experience
Delivery time
7~15 days after payment received.
Product Specifications
Saw blade Diameter (mm)
Steel Core Thickness(mm)
Segment Dimension(mm)
600-2000
5
24×7.0/6.2×13(15,20)
530-2800
5.5
24×7.4/6.6×13(15,20)
460-2800
6.5
24×8.4/7.6×13(15,20)
460-3000
7.2
24×9.2/8.4×13(15,20)
Multi blade segments size
Multi-blade segment are widely used in Iran, Vietnam, India, Russia, Indonesia and other countries. Multi-blade segments have very high requirements for the stability of the segment. If the segment can’t cut, mostly because the sharpness of the segment is not enough. In terms of lifespan, we also have great advantages. Whether the super hard granite or soft granite, our products(LINXING diamond tools) can cut very fastly and meet the needs of different customers.
