LINSING diamond segment features:
1:The segments has good sharpness and high efficiency at the process of stone cutting.
2:Good cutting result: smooth cutting, flat surface and even size,.
3:Stable cutting,narrow cutting gap, stone waste reduction.
4:Good sharpness cutting in high speed without chipping, less noise in work and save power
5:Long life span and stable cutting performance.
6:smooth cutting, flat surface and even size cutting result.
7:Good segment shape easy for diamond opening.
8:High cost-effective.
Product application
Segment for edge cutting D250-D600
Segment for splitting D450-D900

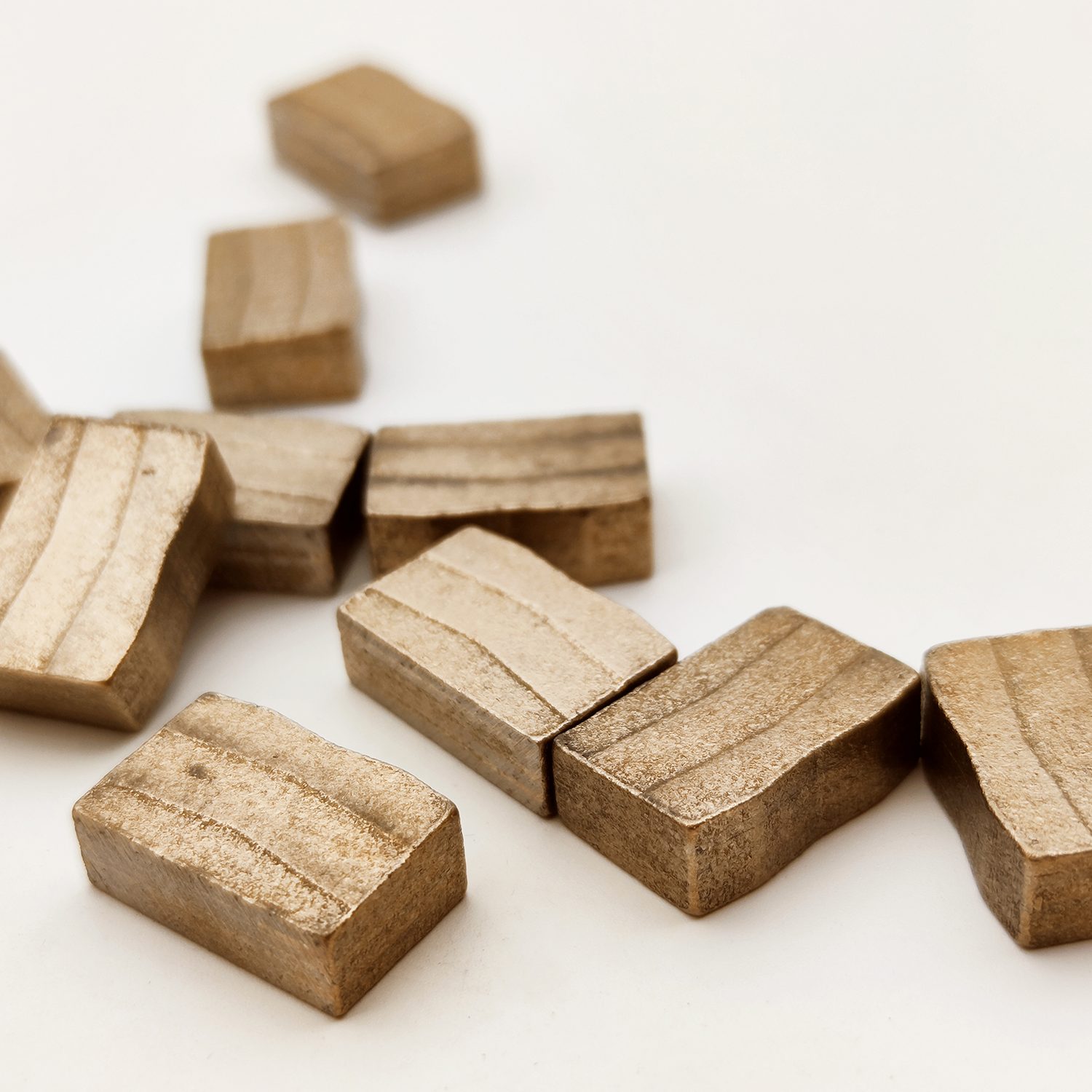

segment for D1200mm Multiblade block cutting 24*7.4/6.6*15

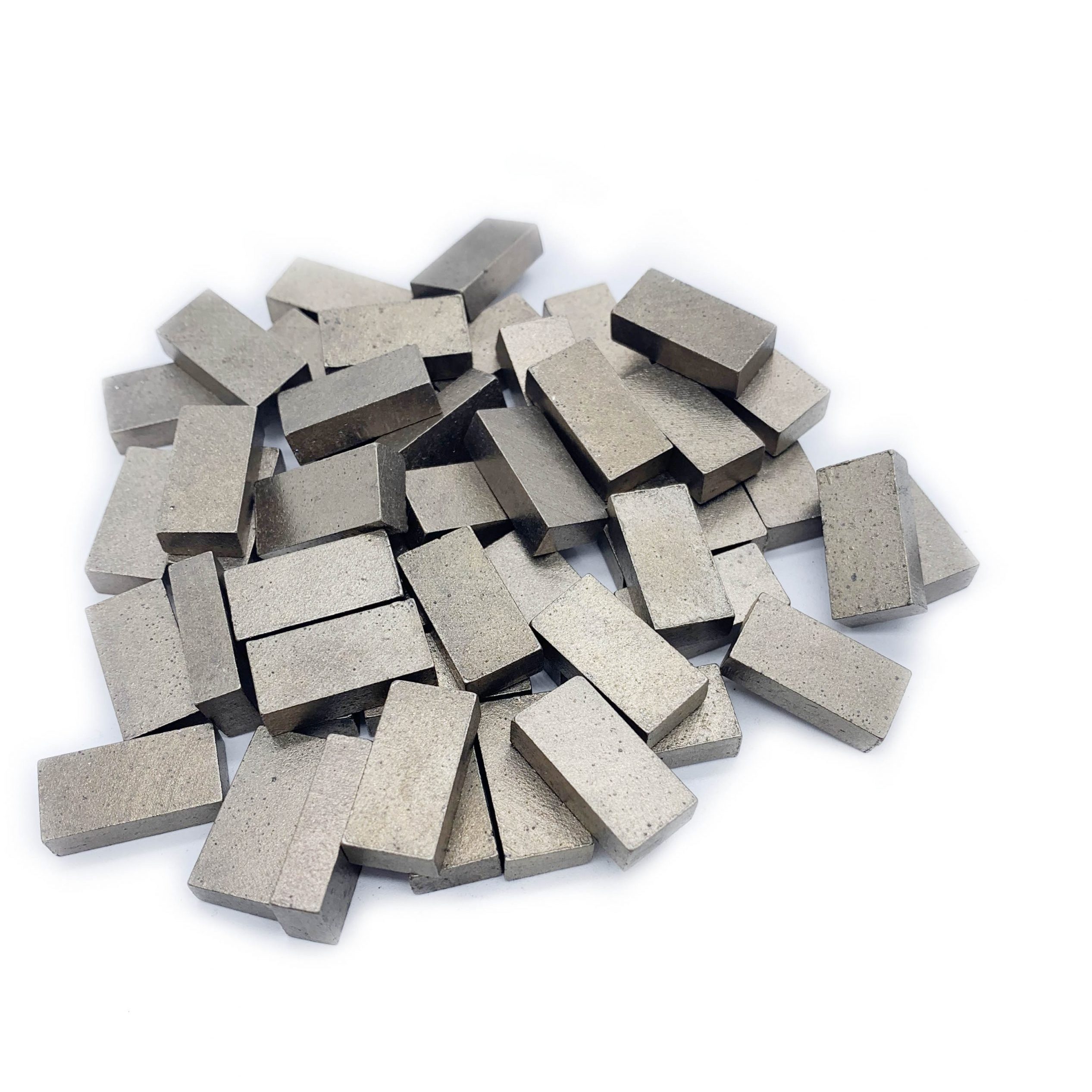

segment for Chinese Multiblade machine block cutting 24*8.4/7.6*15

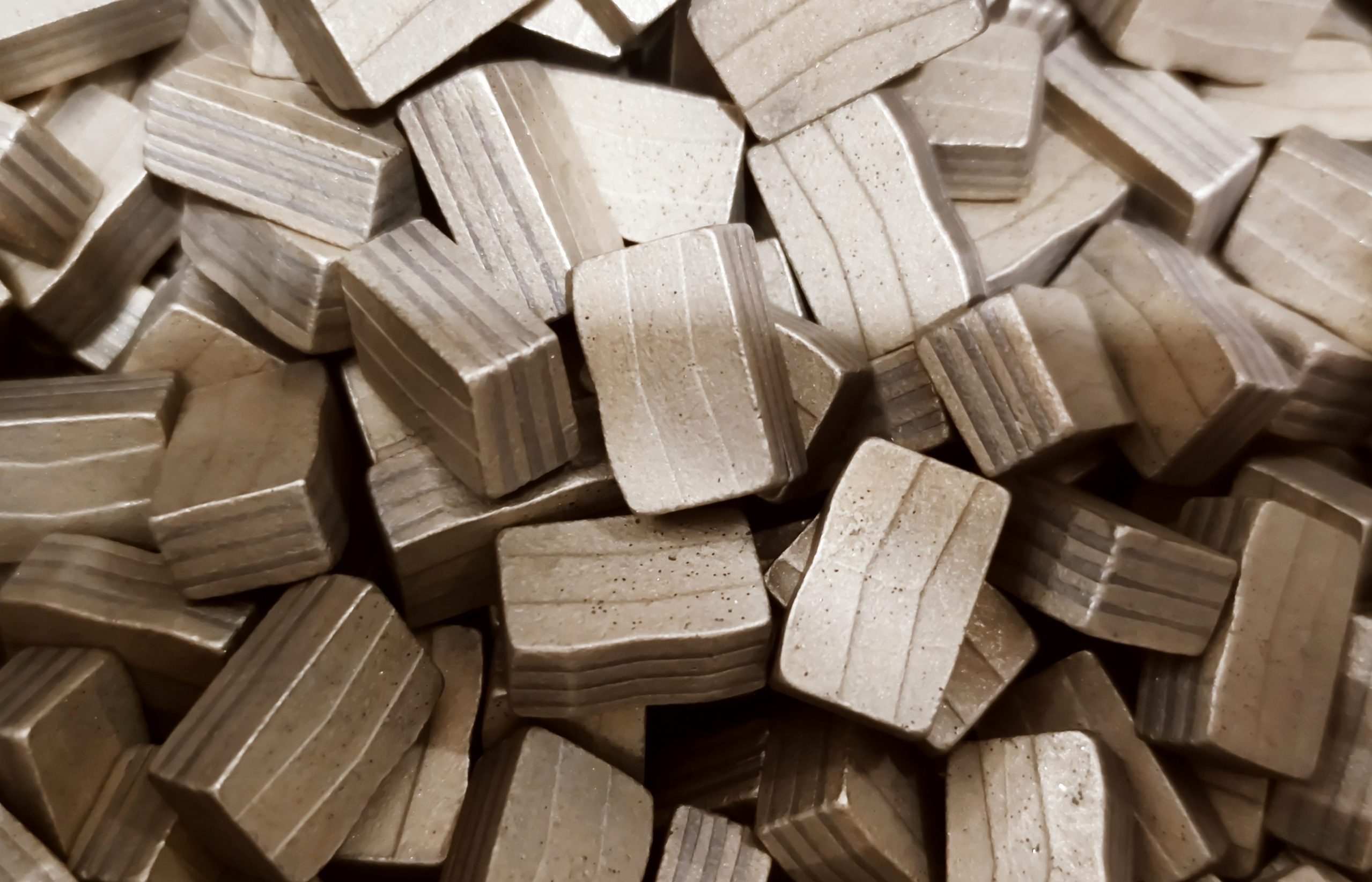

segment for D2500-3000mm single blade block cutting 24*11.5/12.5*20(26, 30)
Segment for quarry 23*14/13*20, 23*15/14*20, 23*16/15*20, 23*17/16*20
Product dimension
| Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension (mm) | Segment No. |
| Φ300 | 2.2 | 40×3.2×10(12,15) | 21 |
| Φ350 | 2.2/2.4 | 40×3.4×10(12,15) | 24 |
| Φ400 | 2.6 | 40×3.6×10(12,15,20) | 28 |
| Φ450 | 2.8/3.0 | 40×4.0×10(12,15,20) | 32 |
| Φ500 | 3.0/3.2 | 40×4.2×10(12,15,20) | 36 |
| Φ600 | 3.6/3.8 | 40×4.8×10(12,15,20) | 36/42 |
| Φ700 | 4 | 40×5.2×10(12,15,20) | 42 |
| Φ800 | 4.5 | 40×6.0×10(12,15,20) | 46 |
| 900 | 5.0 | 24×7.0/6.4×12(15,20) | 64 |
| 1000 | 5.0 | 24×7.0/6.4×12(15,20) | 70 |
| 1200 | 5.5 | 24×8.0/7.4×12(15,20) | 80 |
| 1300 | 6.0 | 24×8.4/7.8×12(15,20) | 88 |
| 1400 | 6.5 | 24×8.4/7.8×12(15,20) | 92 |
| 1600 | 7.2 | 24×9.2/8.4×12(15,20) | 108 |
| 1800 | 7.5 | 24×10.0/9.0×12(15,20) | 120 |
| 2000 | 8.0 | 24×10.5/9.5×15(20,25) | 128 |
| 2200 | 9.0 | 24×11.0/10.0×15(20,25) | 132 |
| 2500 | 9.0 | 24×11.5/10.5×15(20,25) | 140 |
| 3000 | 9.5 | 24×12.5/13.5×20(25,30) | 160 |
| 3500 | 9.5 | 24×13.5/14.5×20(25,30) | 180 |
For different blade and stones, customized segment size and numbers will be suggested and LINXING can supply different specifications and diameters as per customer’s requirement.
